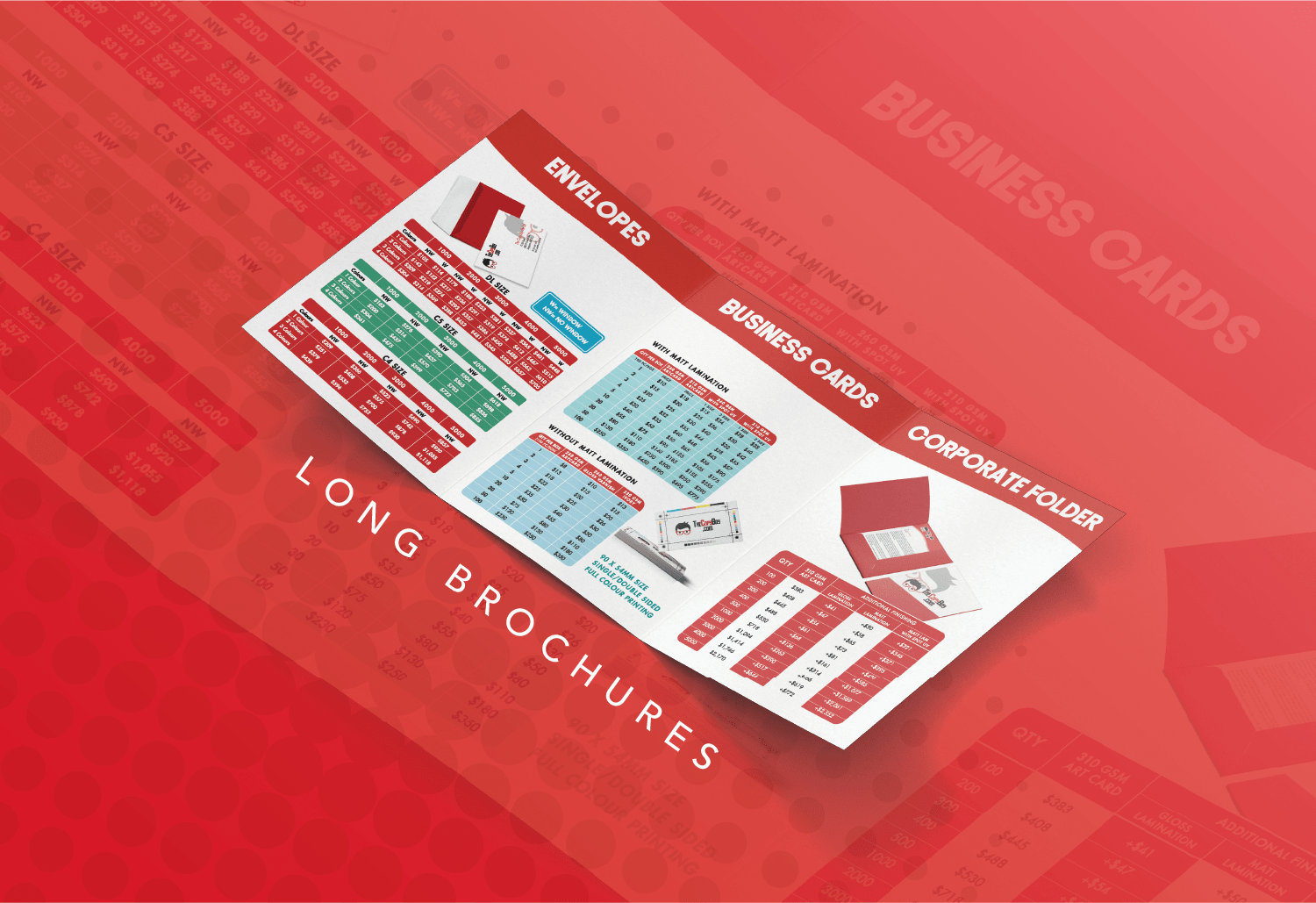

Long Brochure Printing Singapore — Multi-Panel Folded Brochures (3-Panel & 4-Panel A4)
Multi-panel long brochures for product catalogues, service overviews, media kits, event programmes, and marketing campaigns that need more content space than a standard tri-fold. With 6 to 8 panels of printable area, long brochures unfold into an expansive layout that lets you present detailed information, product ranges, step-by-step processes, or visual stories in a single, self-contained piece.
Our long brochures are offset printed double-sided in full colour, then machine-creased and folded to your chosen configuration. Available in two sizes with a wide range of fold types, paper stocks, and finishing options.
Available Sizes
- 3 × A4 (297 mm × 630 mm) — three A4 panels in a row. Unfolds to reveal 6 printable panels (3 front, 3 back). A versatile format for detailed service brochures, product ranges, restaurant menus, and corporate profiles that need more room than a standard A4-to-DL tri-fold.
- 4 × A4 (297 mm × 840 mm) — four A4 panels in a row. Unfolds to reveal 8 printable panels (4 front, 4 back). The largest brochure format we offer. Ideal for comprehensive product catalogues, timeline displays, campus or facility maps, exhibition guides, and brochures with multiple distinct sections.
Fold Types

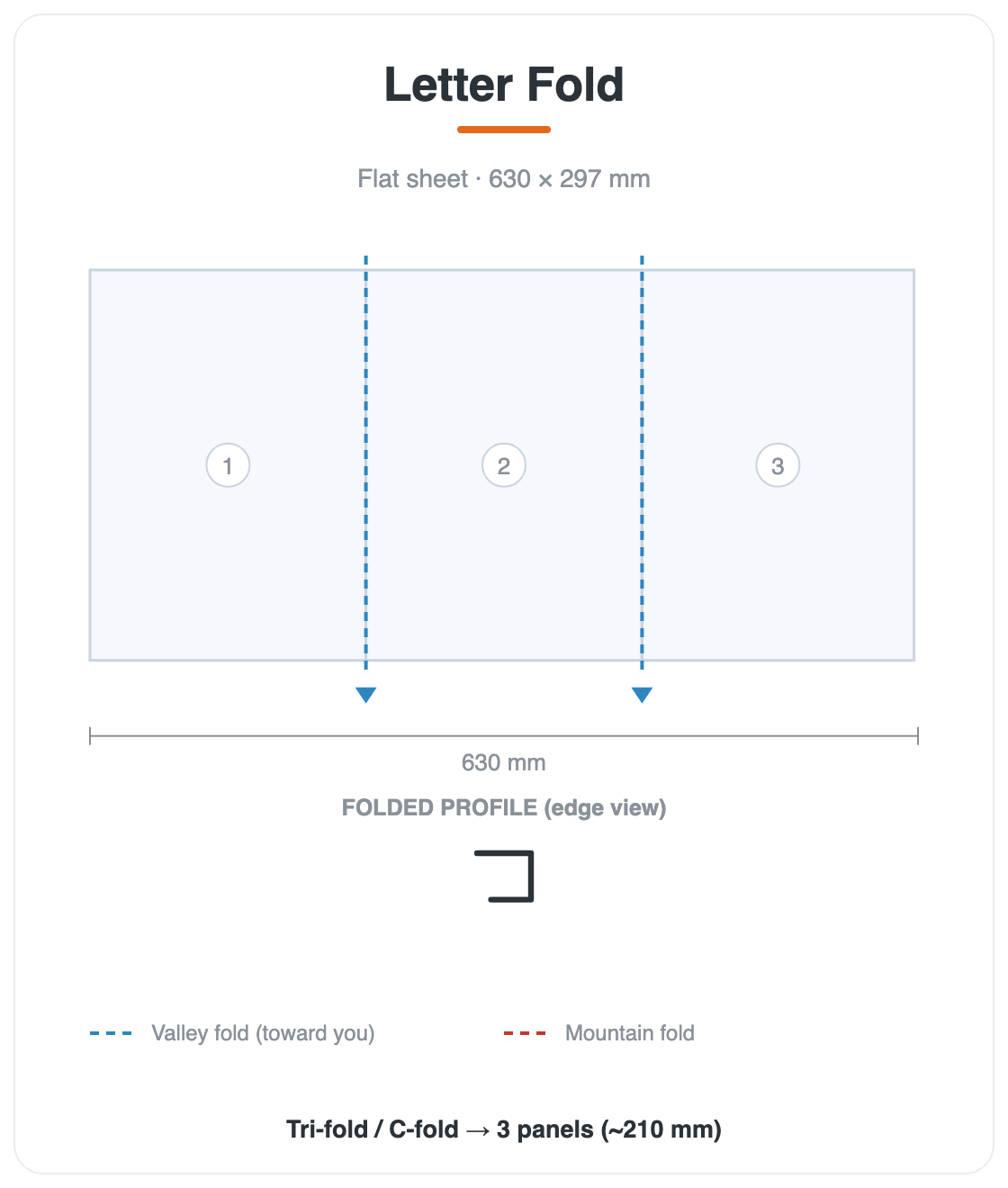

- Letter Fold (C-Fold) — panels fold inward sequentially, one on top of the other. Creates a compact, layered format that opens panel by panel. The most familiar fold style.

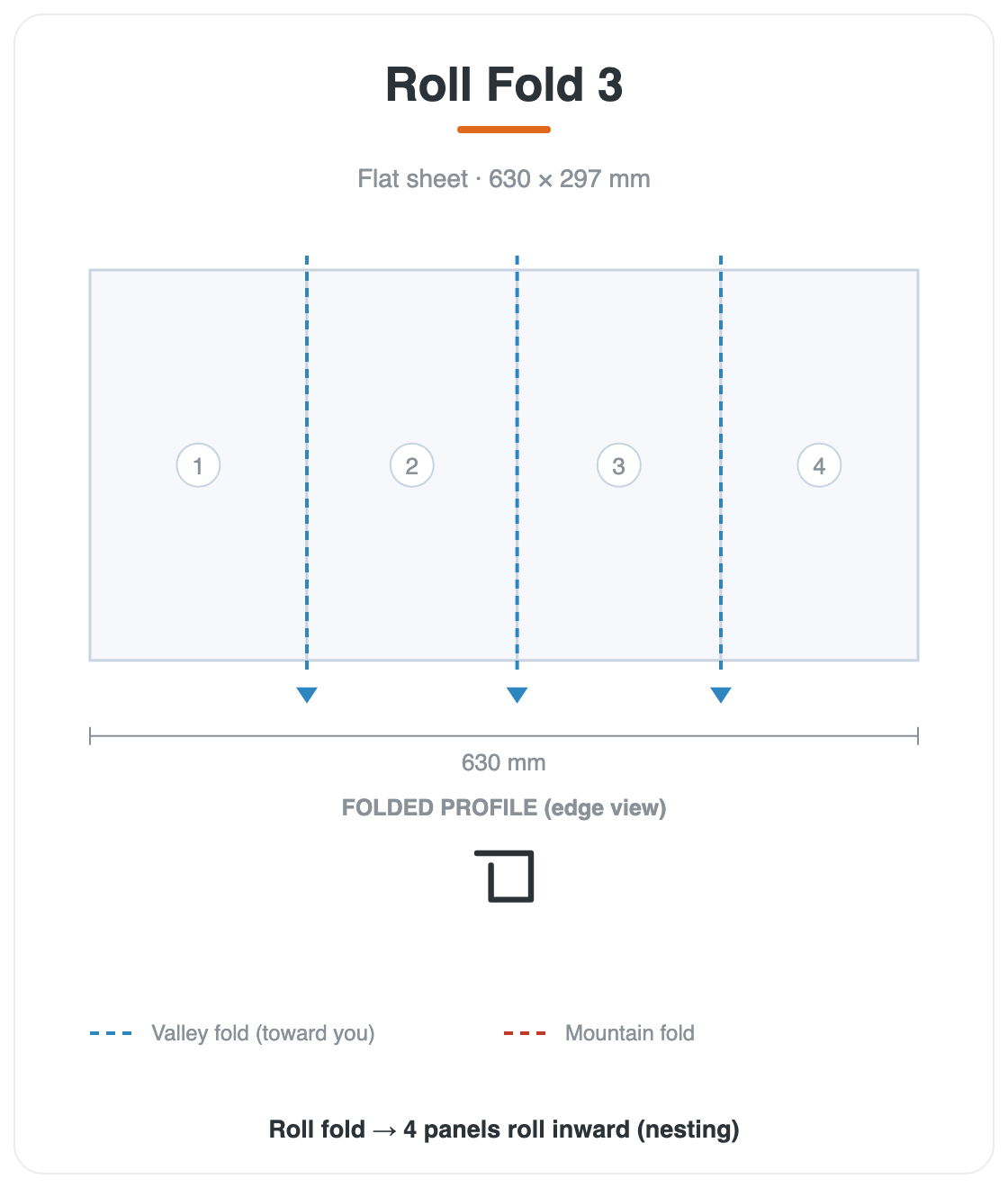

- Roll Fold — similar to a letter fold, but each panel wraps around the next in a rolling sequence. Commonly used for multi-step guides and sequential content where you want the reader to discover information in a specific order.

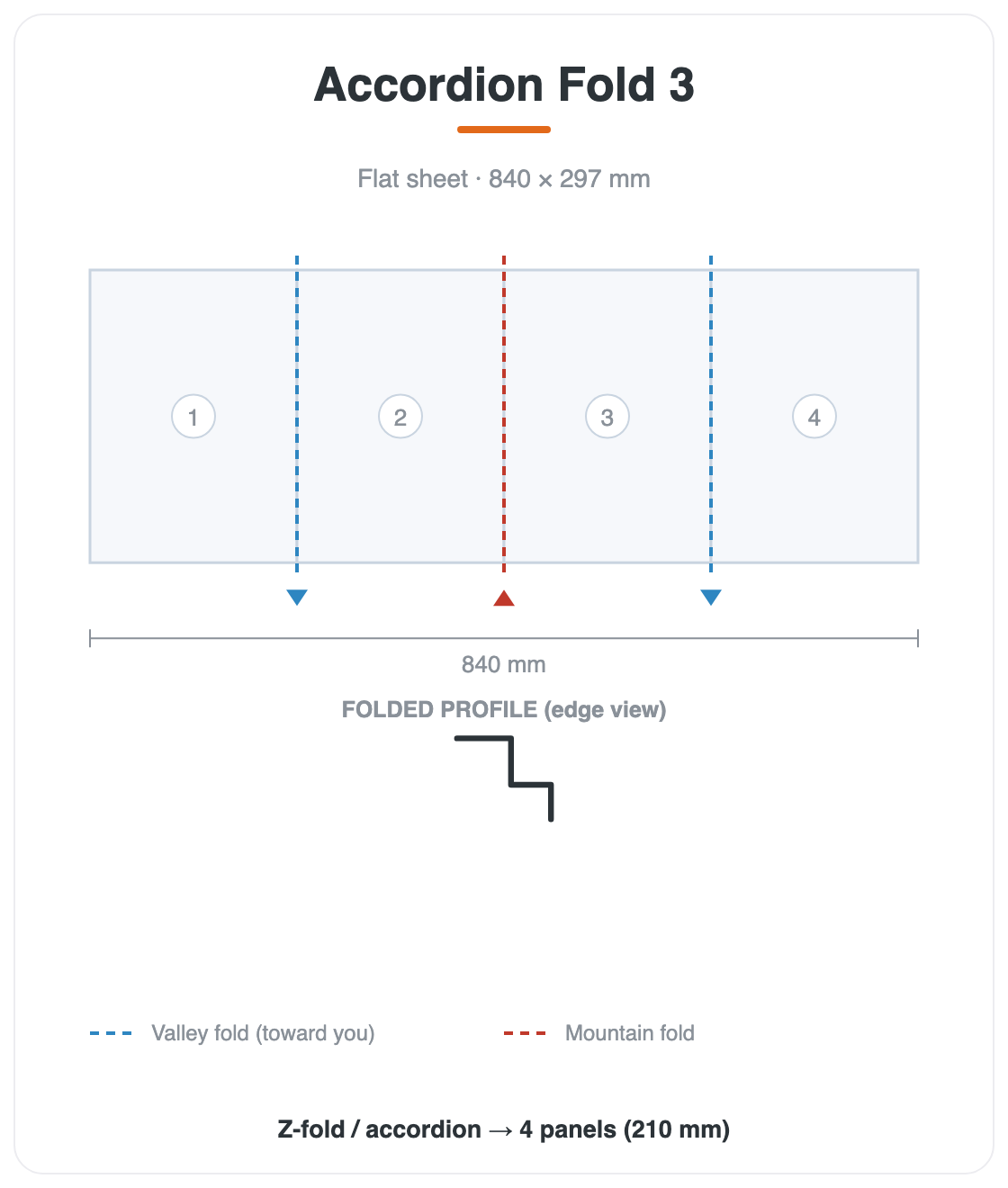

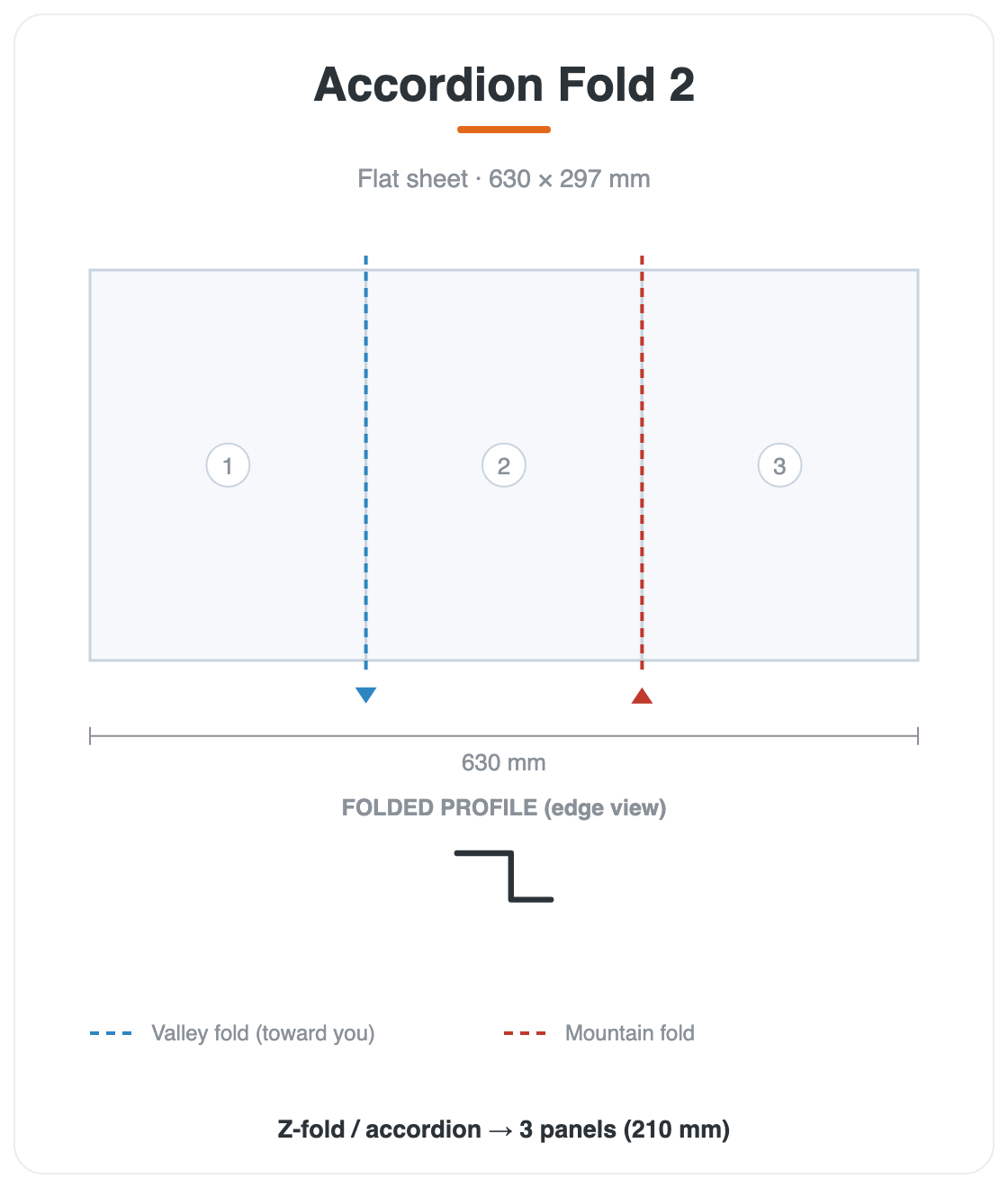

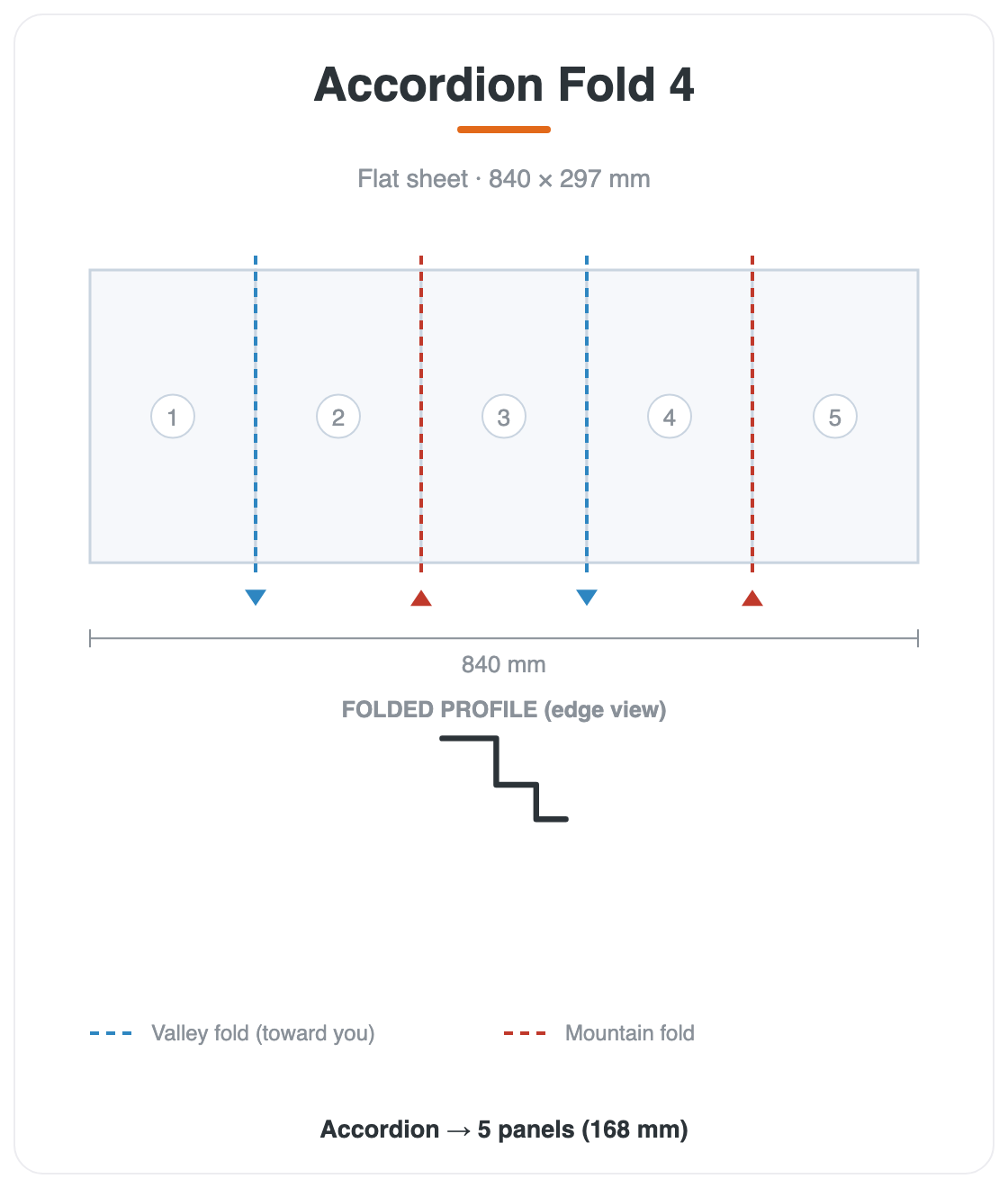

- Accordion Fold (Z-Fold) — 2, 3, or 4 panels — panels fold in alternating directions like a zigzag. Every panel is immediately accessible when partially opened. Works well for timelines, process flows, comparison layouts, maps, and content meant to be scanned quickly.

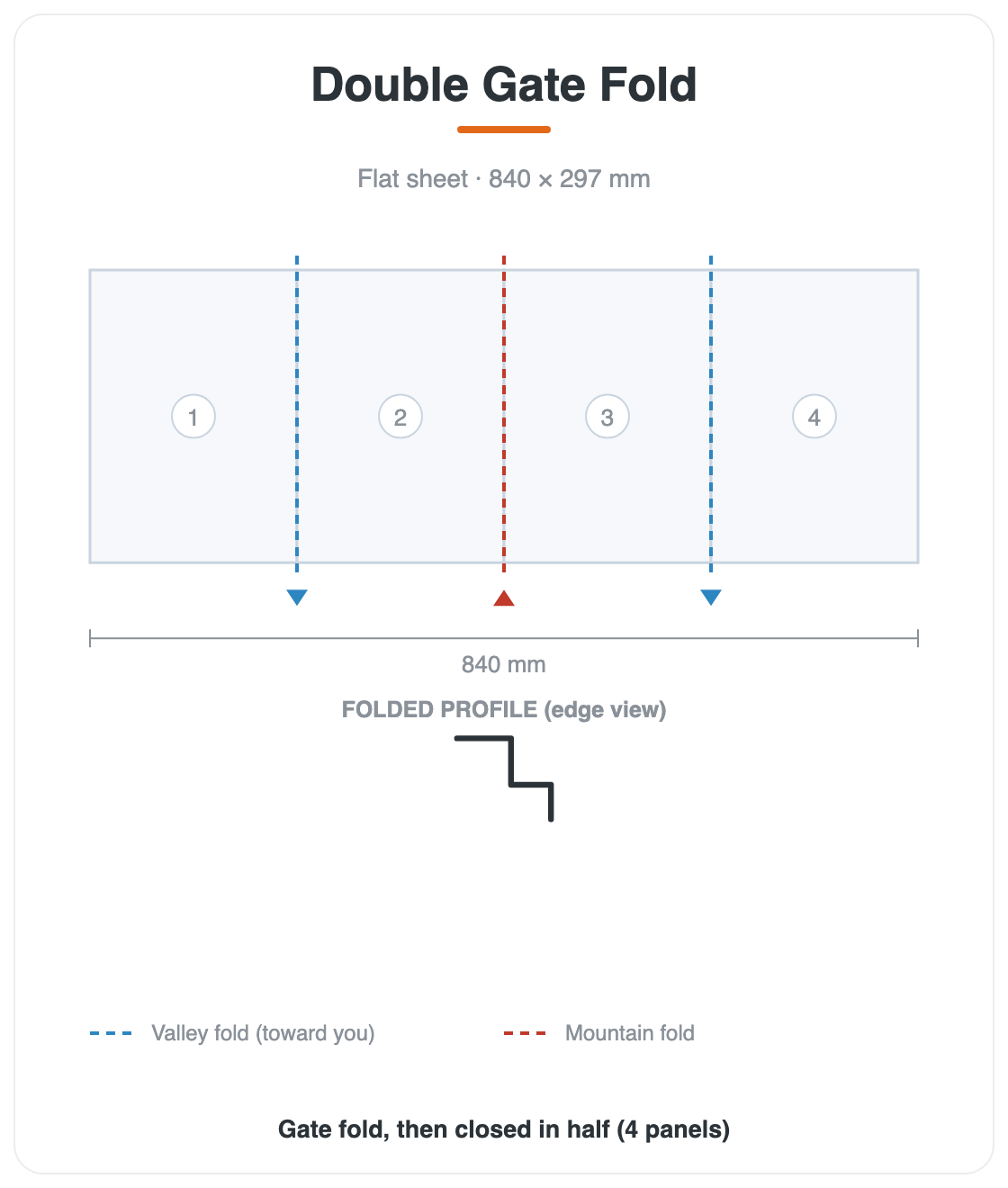

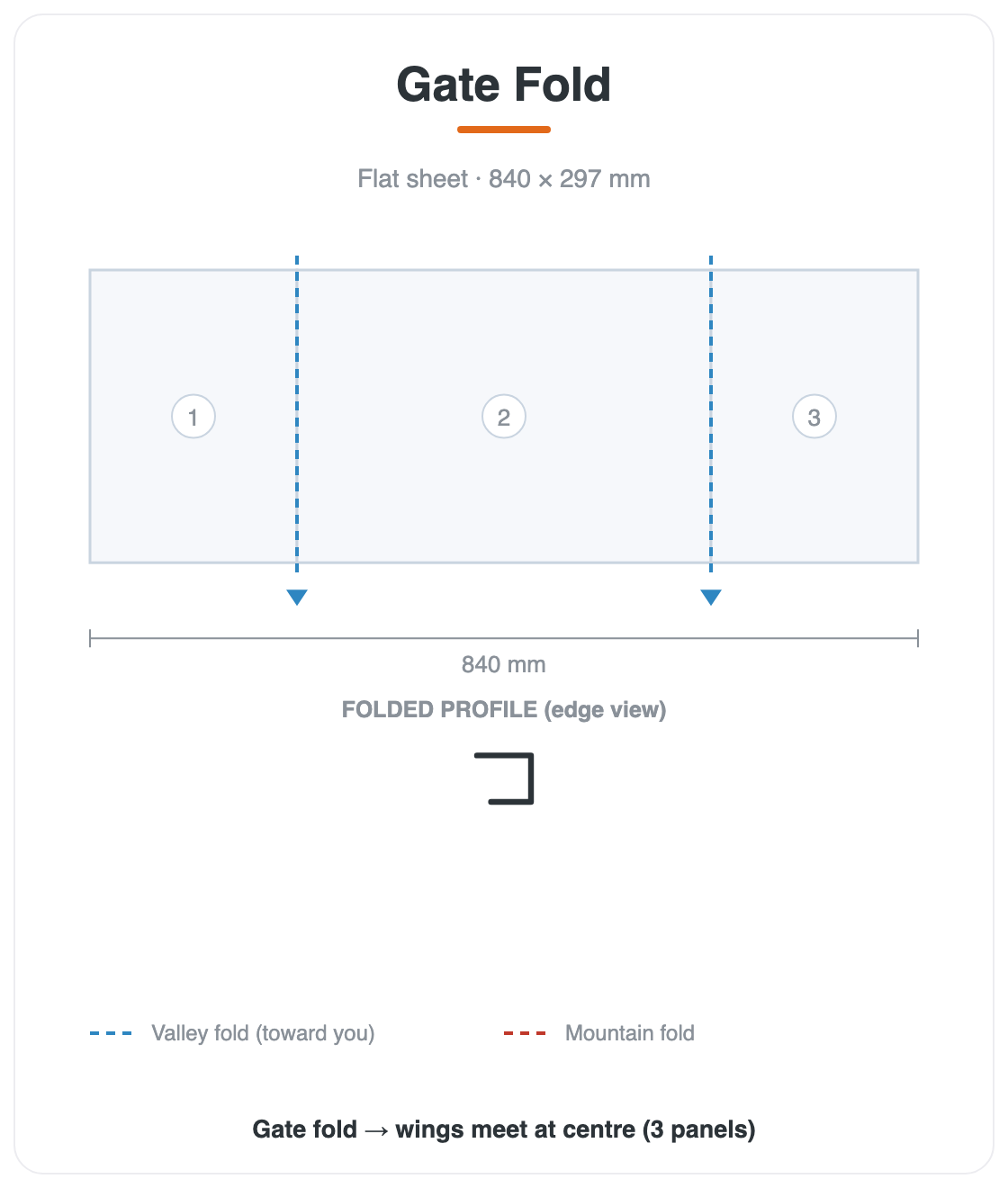

- Gate Fold — the two outer panels fold inward to meet in the centre, like opening a pair of gates. Creates a dramatic reveal when opened. Popular for product launches, invitations, and visual-heavy brochures where the centrespread is the hero.

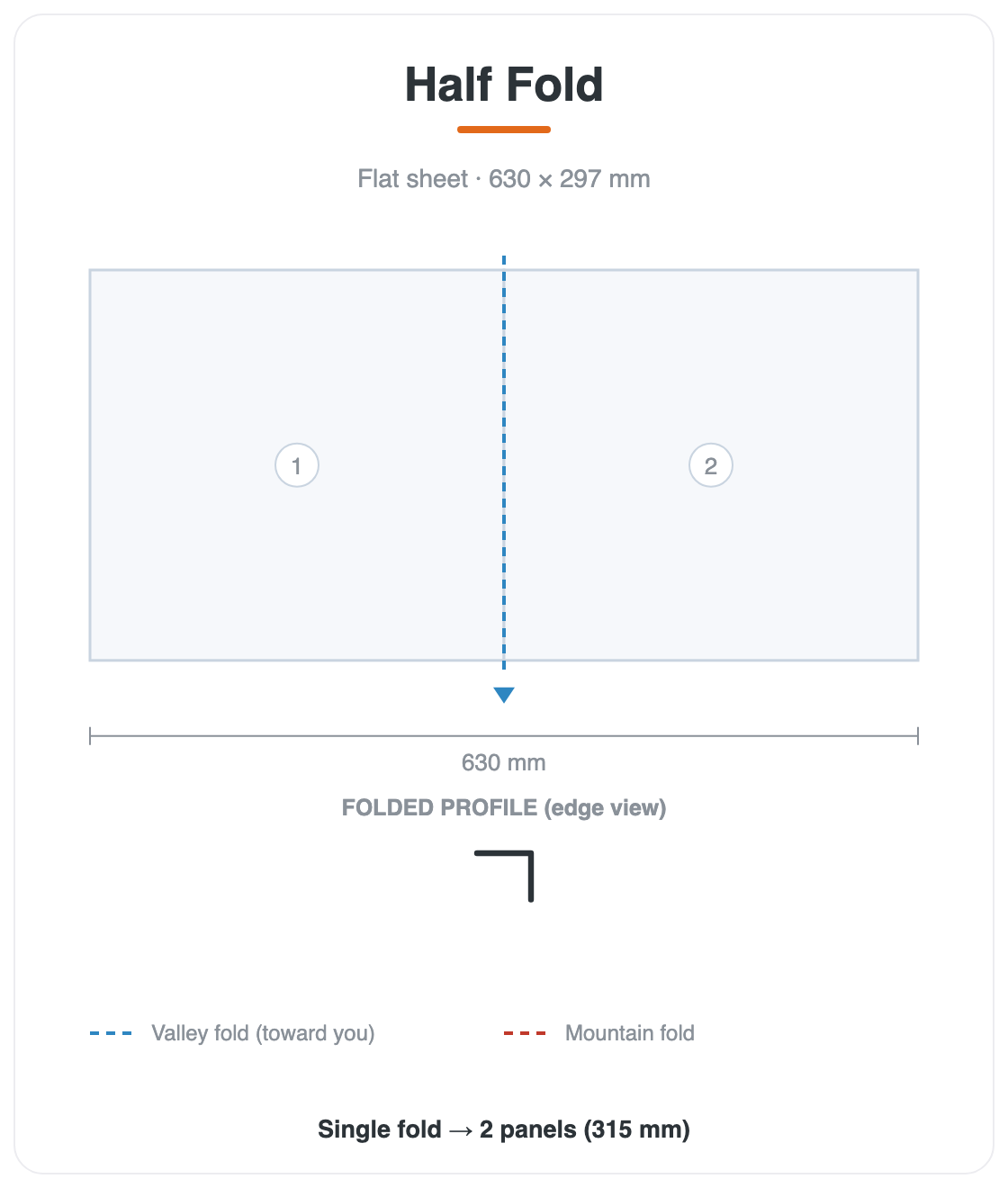

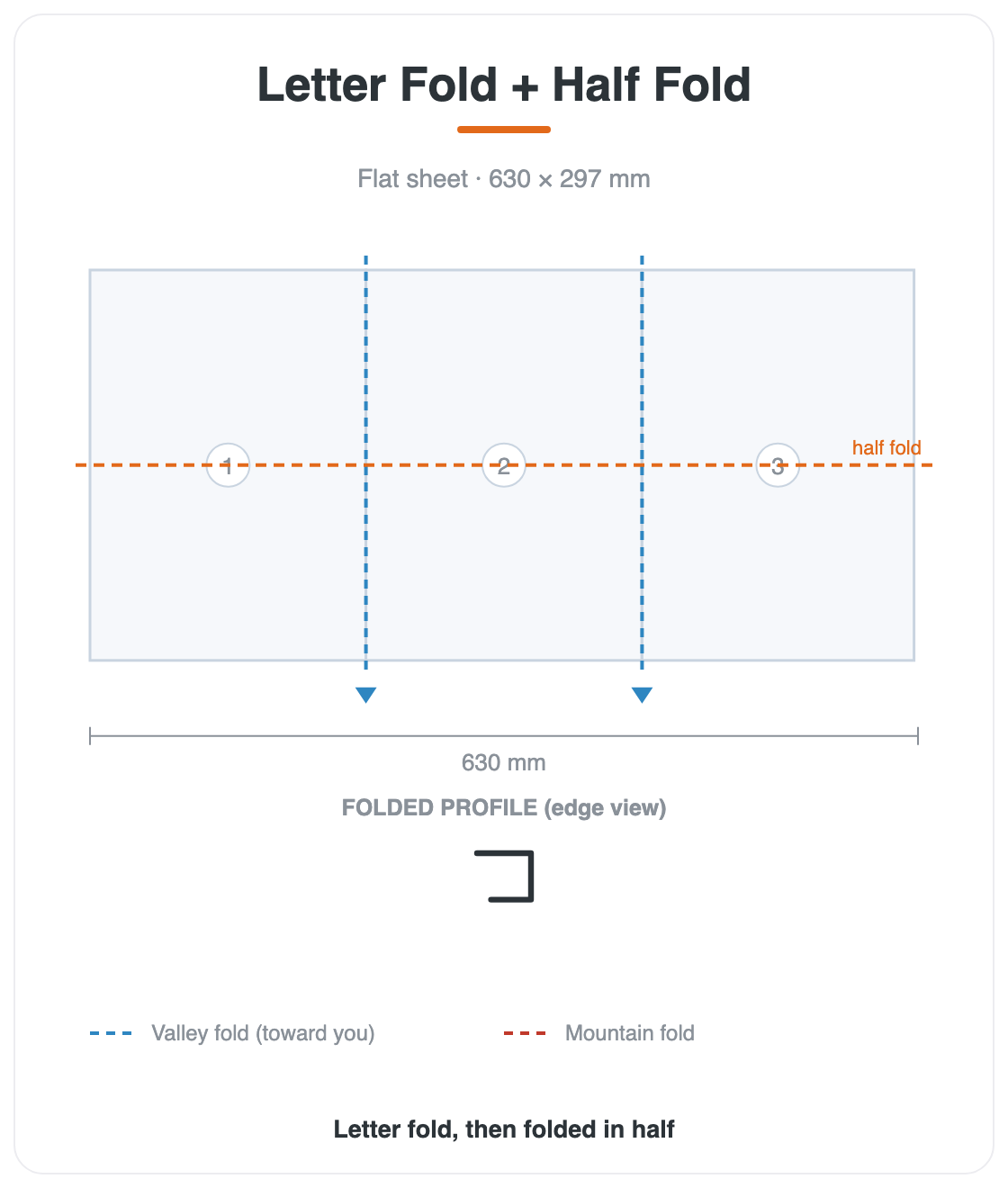

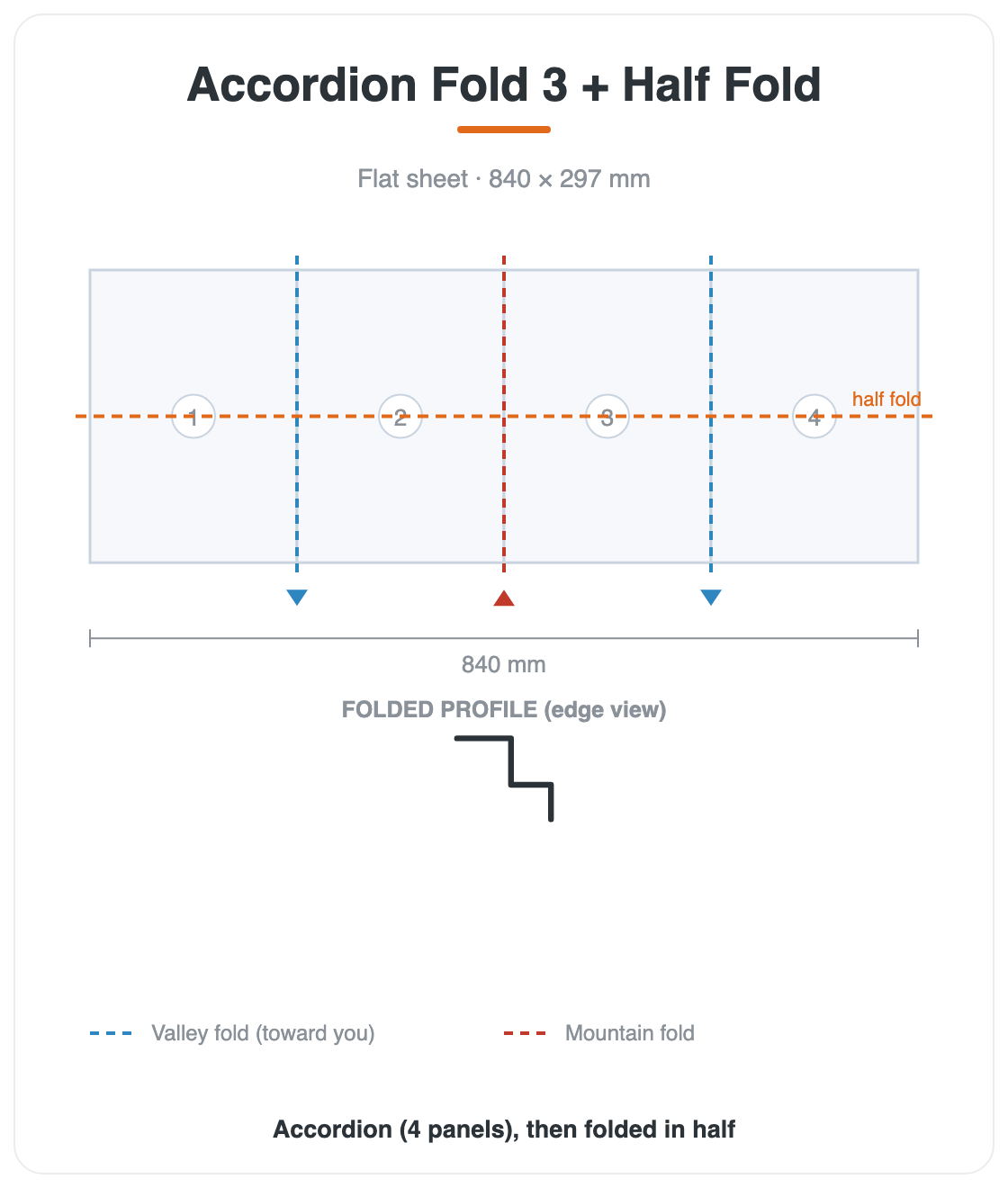

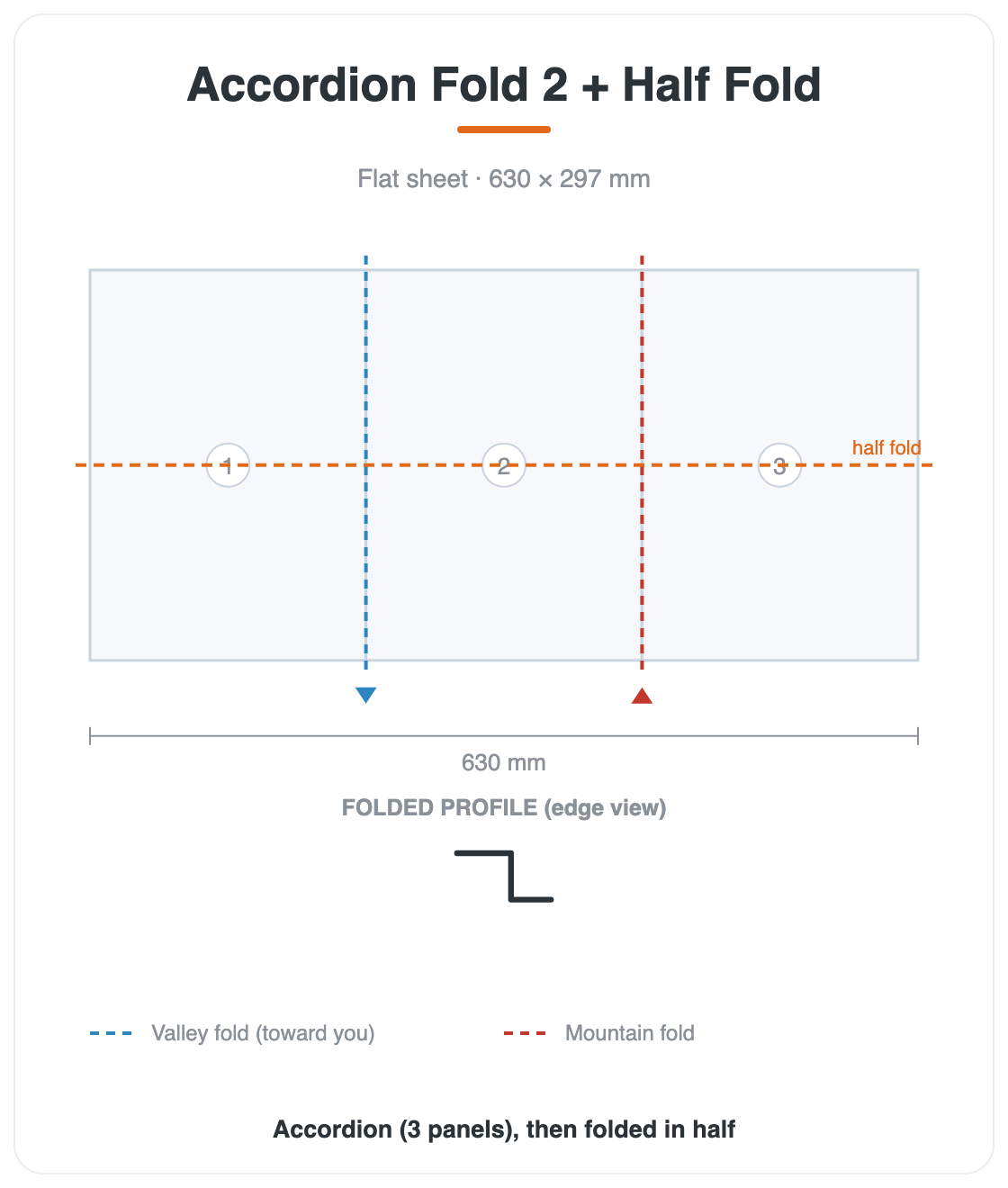

- Accordion + Half Fold — a hybrid fold combining a zigzag accordion with a final half fold. Creates a more compact finished size while maintaining the multi-panel layout when fully opened. Useful for brochures with many panels that still need to fit in a standard envelope or rack.
Not sure which fold suits your content? A good rule of thumb: if your content is sequential (step 1, step 2, step 3), go with a roll fold or accordion. If you want a dramatic opening reveal, go with a gate fold. If you need a compact, familiar format, go with a letter fold.
Paper Stock Options
Lightweight (for mass distribution and mailers):
- 128 GSM Gloss Art Paper — coated paper with a glossy sheen. Lightweight with vibrant colour reproduction, ideal for brochures distributed in volume.
- 128 GSM Matt Art Paper — coated paper with a smooth matte surface. Same weight as gloss but with a softer, non-reflective finish.
Medium Weight (most popular):
- 157 GSM Gloss Art Paper — a mid-weight coated paper with excellent colour vibrancy. Feels more substantial than 128 GSM and is the most commonly chosen stock for marketing brochures.
- 157 GSM Matt Art Paper — mid-weight with a matte finish. Professional and easy to read, especially for text-heavy brochures.
Heavyweight (for premium brochures):
- 260 GSM Gloss Art Card — thick card stock with a glossy finish. Feels premium and rigid. Best for product catalogues, menus, and brochures that need to withstand frequent handling.
- 260 GSM Matt Art Card — thick card with a matte finish. Elegant and tactile, ideal for corporate profiles, luxury brand brochures, and high-end marketing materials.
Finishing Options
A wide range of finishing treatments to elevate your brochure:
Lamination:
- Gloss Lamination (1-side or 2-side) — vibrant, reflective protective film
- Matt Lamination (1-side or 2-side) — smooth, elegant matte protective film
- Soft Touch Lamination (1-side or 2-side) — velvety, suede-like texture for a luxurious tactile feel
UV Varnish:
- UV Varnish (1-side or 2-side) — a clear protective coating with a subtle sheen
Combination Finishes:
- Lamination + Spot UV — matte or gloss lamination base with selective glossy UV highlights on logos, headings, or design elements. Creates a striking visual and tactile contrast.
Finishing is recommended for 260 GSM art card and for any brochure that will be handled repeatedly — menus, catalogues, and point-of-sale materials benefit significantly from the added durability and professional feel.
Common Uses
- Product catalogues and lookbooks — showcase your full product range across multiple panels
- Restaurant and café menus — unfold to display your complete menu in a single piece
- Corporate profiles and media kits — present your company story, services, team, and achievements
- Event programmes and exhibition guides — maps, schedules, and sponsor information in one handout
- Tourism and travel brochures — itineraries, destination highlights, and maps
- Property and real estate — development overviews, floor plans, and facility maps across multiple panels
- Step-by-step guides and instructional materials — processes, tutorials, and how-to content
Artwork Requirements
- File Format: PDF, AI, PSD, JPG, PNG
- Colour Mode: CMYK
- Resolution: Minimum 300 DPI
- Bleed: 3 mm on all sides
- For AI files: all text must be outlined and images embedded
- Submit artwork at the full open (unfolded) size with fold lines clearly marked
- Keep critical text and images at least 5 mm from fold lines — content on a fold can crack or distort
- For roll folds and letter folds: the innermost panel must be slightly narrower (approximately 2 mm less) than the outer panels to fold cleanly without buckling
Quantity
Available from 300 to 10,000 brochures.
Production Lead Time
- Standard: 6–8 working days
Delivery
- Standard courier: $5 (2–3 working days)
- Same-day / timeslot delivery: $20
- Free delivery for orders above $100
Looking for a Simpler Brochure?
If you only need a standard tri-fold or bi-fold, check out our Brochures product — available in A3, A4, and A5 sizes with letter fold and accordion fold options.
